Introduction :

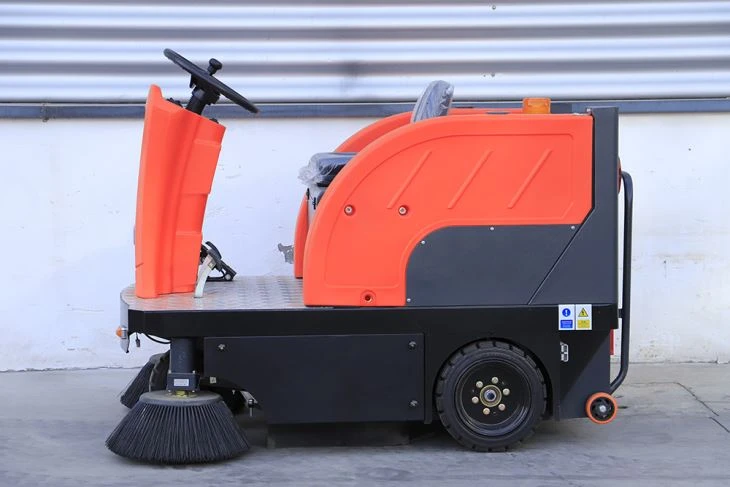

1200W drive motor, filter area 8sq.m, strong negative pressure centrifugal aluminum blade, higher than similar sweeper, double the dust removal efficiency, specially to solve the dust environment problems. Adopt the latest brushless ac motor, you can choose 1.5kw to 7.5kw high-power drive motor, no maintenance, stepless gearbox, ensure strong and stable power output, can climb mountains for a long time.
Features：
1. 48V maintenance-free battery power, energy saving and environmental protection, longer continuous use time, optional lithium battery.
2, with long service life, stable performance, high speed accuracy, high speed ratio, hard output power, stable operation.
3. Large capacity water tank can be used for a long time
4. Double-sided brush and main roller brush controlled by independent motor are equipped to make cleaning more efficient
Technical data :
S/N | Rated member | 1 person | Filter area | 8m² |
1 | Length*width*height | 1700*1400*1500MM | System Voltage | 48V |
2 | Working speed | 10.KM/H | Drive motor power | 1200W |
3 | Minimum turning radius | Turning in situ | Charging time | （6-8）h |
4 | Maximum gradient | >30degree | weight | 518KG |
5 | braking distance | ≤4m | Working time | 4-6H |
6 | Sweep width | 1400MM | Bin capacity | 160L |
7 | Main brush width | 700MM | Rolling brush motor | 850W |
8 | Work efficiency | 11000㎡/H | Power source | 48V |
9 | Battery capacity | 48V80AH | Water tank | 120L |
