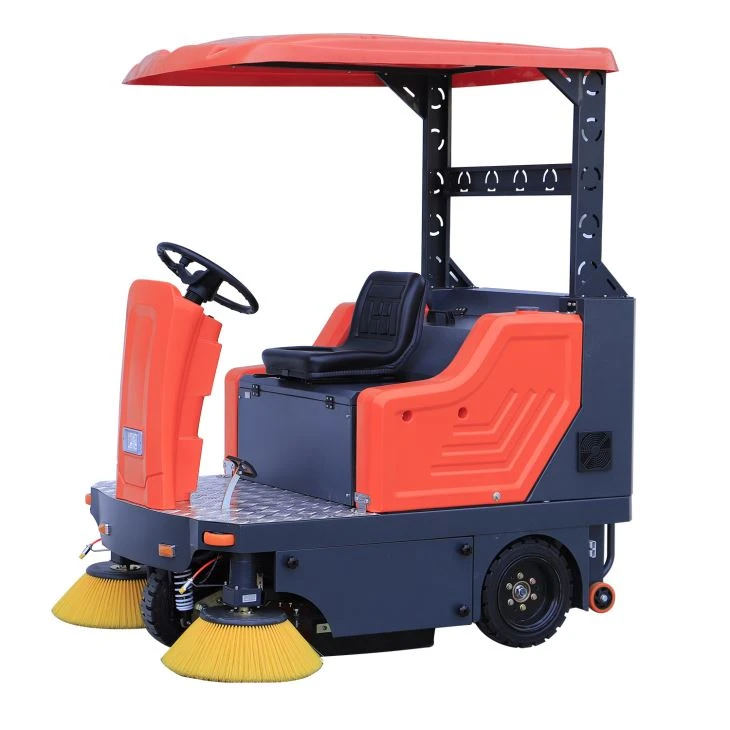

The Core Technology of Electric Industrial Sweeping Machine
1200W drive motor, 8sq.m large filtering area, with strong negative pressure centrifugal aluminum blades, higher than the same type sweeping machine with double dust collection efficiency, specialized to solve the problem of the dusty environment.
Adopt the latest brushless ac motor, can choose 1.5kw to 7.5kw high-power drive motor, maintenance-free, stepless gearbox, ensure the power output is strong and stable, can climb the hill for a long time.
Sweeper wiring harness conforms to TS16949 Standard with reliable power supply, all key connectors are retardant and waterproof.
3.This function, combined with the on-board controller, has the self-braking function on the upper ramp to prevent slope sliding and the anti-impact deceleration function on the lower ramp to maximize the driving safety of operators and the safety protection of pedestrians around.
Performance Parameters of P80 Electric Industrial Sweeping Machine
|2||Working speed||8.KM/H||Drive motor power||1200W|
|3||braking distance||≤4m||Working time||4-6h|
|4||Sweep width||1400MM||Bin capacity||160L|
|5||Main brush width||700MM||Rolling brush motor||850W|
|6||Work efficiency||8800㎡/H||Power source||48V|
|7||Battery capacity||48V80AH||Water tank||80L|
Performance Features of Electric Industrial Sweeping Machine
Simple operation platform: With icon button and Curtis electricity meter, it is easy to complete all operations
Novel roll front face: Two maintenance openings are arranged behind the shell of the rotational direction column, which is easy to maintain and convenient to adjust
Arrow warning light: Rear double arrow warning light, safe operation, always remind people around
All rolled body integrated fuse box: Rolling plastic body with high integrated electrical box, Schneider relay, stable performance, convenient maintenance
Extended roller filter element: Efficient cleaning, good dust control effect, longer service life.
